25mm Standard Balanced Y-Seal: A Practical Guide to Reliable Gas Spring and Damper Sealing

Reliable sealing is one of the most important factors in the performance, service life, and safety of gas springs, dampers, and other controlled-motion assemblies. A seal must prevent leakage while accommodating reciprocating movement, pressure variation, assembly tolerances, temperature changes, and repeated exposure to mechanical stress. When the seal is poorly selected, even a well-designed gas spring or damper can suffer from oil loss, gas leakage, increased friction, unstable movement, premature wear, and costly maintenance.

The 25mm Standard Balanced Y-Seal is designed as a practical sealing component for applications using a 24 mm steel pipe inner diameter and a 10 mm piston rod diameter. With product dimensions of 25 × 9.2 × 4 mm, an NBR sealing body, and a 24 × 2.4 mm O-ring adapter, this Y-type oil seal ring provides a balanced combination of sealing stability, moderate friction, compatibility with common stock components, and cost-conscious performance.

Identified by product code A-1-028, the seal is intended for industrial applications within a stated design applicable range of 50–1300N. This range should be understood as the supplied application parameter for the corresponding gas spring or damper design rather than as a universal pressure conversion. Actual suitability depends on the complete assembly, including cylinder geometry, rod finish, lubrication, temperature, pressure, speed, stroke frequency, and installation method.

This article examines the structure, materials, manufacturing strengths, application value, installation considerations, quality factors, and selection criteria associated with the 25mm Standard Balanced Y-Seal. It also explains why a carefully engineered Y-seal can offer advantages over generic sealing parts and how specialized manufacturing capabilities support consistent performance in demanding industries.

25mm Standard Balanced Y-Seal

1. Product Overview

The 25mm Standard Balanced Y-Seal is a Y-type oil seal ring developed for use in gas springs, dampers, and related reciprocating sealing systems. Its core function is to maintain a controlled sealing interface between the stationary cylinder or guide structure and the moving piston rod. The seal is designed to retain internal oil or lubricant and help prevent the unwanted migration of gas, oil, moisture, and contaminants through the rod passage.

The basic product specifications are 25 mm outside diameter, 9.2 mm inside diameter, and 4 mm height. The product is paired with a 24 × 2.4 mm O-ring adapter. This adapter supports installation and positioning within the relevant housing configuration, while the Y-shaped sealing profile provides the primary dynamic sealing action around the piston rod.

Product Attribute	Specification
Product name	25mm Standard Balanced Y-Seal
Seal type	Y-type oil seal ring
Product code	A-1-028
Product dimensions	25 × 9.2 × 4 mm
Outside diameter	25 mm
Inside diameter	9.2 mm
Height	4 mm
O-ring adapter	24 × 2.4 mm
Primary material	NBR
Steel pipe inner diameter × piston rod diameter	24 × 10 mm
Stated design applicable range	50–1300N
Friction characteristic	Moderate friction design

The seal is described as fitting a 24 × 10 configuration for 1300N industrial needs. This makes it especially relevant to manufacturers and maintenance teams working with standardized gas spring and damper dimensions. Compatibility with common component sizes can simplify sourcing, reduce the need for special tooling, and support more efficient assembly planning.

2. Why Y-Type Seals Matter in Reciprocating Equipment

Reciprocating equipment creates a more demanding sealing environment than many static applications. The piston rod repeatedly moves in and out of the cylinder, creating sliding contact between the seal lip and the rod surface. During each movement cycle, the seal must maintain sufficient contact pressure to prevent leakage while avoiding unnecessary friction that could reduce operating efficiency.

A Y-type profile is commonly used because its geometry can provide a controlled sealing interface under dynamic movement. The two branches of the profile form a flexible sealing structure, while the central body supports dimensional stability. As pressure changes inside the assembly, the profile can respond to the operating conditions and maintain contact with the rod and housing surfaces.

In a gas spring or damper, the seal performs several functions at the same time. It helps retain the working medium, supports separation between internal and external environments, reduces the movement of lubricant out of the assembly, and limits the entry of dust or moisture. The seal also contributes to the consistent force and damping behavior expected from the finished product.

Seal performance depends on more than the profile alone. The interaction among the elastomer, rod surface, cylinder bore, lubricant, pressure, temperature, and assembly tolerances determines the actual result. For this reason, a standardized Y-seal must be selected according to the complete operating environment rather than only by nominal diameter.

2.1 Dynamic sealing action

During rod extension, the inner sealing edge follows the rod surface and maintains a controlled contact zone. During rod retraction, the same sealing edge must accommodate the reverse sliding direction without rolling, twisting, or losing stability. A properly manufactured profile distributes contact forces in a balanced manner, which helps reduce localized wear.

Pressure inside the cylinder may also support the sealing action. When the working medium applies force to the seal profile, the sealing lips can be pressed toward the mating surfaces. This pressure-assisted behavior is one reason Y-type seals are widely considered for hydraulic, pneumatic, gas spring, and damper applications. However, the actual pressure response depends on profile design, material hardness, installation, and the complete groove configuration.

2.2 Controlling leakage and friction

A successful seal does not simply create the highest possible contact force. Excessive contact can increase friction, generate heat, accelerate wear, and reduce the smoothness of movement. Insufficient contact can lead to leakage or contamination. The 25mm Standard Balanced Y-Seal is intended to provide a moderate friction characteristic, making it suitable for applications that require a compromise between sealing reliability and controlled motion.

Moderate friction can be valuable in gas springs and dampers because these systems often need predictable extension and compression behavior. An overly aggressive seal may make the assembly feel stiff or inconsistent, while a seal with insufficient contact may permit oil leakage and progressive loss of performance. A balanced design supports a more practical operating window when used with suitable rod finish, lubricant, and dimensional control.

3. Material Selection: The Role of NBR

The 25mm Standard Balanced Y-Seal uses NBR, or nitrile butadiene rubber, as its primary sealing material. NBR is widely used in oil seals, O-rings, hydraulic seals, pneumatic seals, and gas spring components because it offers a useful combination of oil resistance, elasticity, abrasion resistance, and cost efficiency.

For applications involving lubricating oils and common industrial fluids, NBR can provide dependable sealing performance when the fluid chemistry and temperature remain within the material’s suitable operating conditions. Its resistance to many petroleum-based oils makes it a practical choice for standard gas spring and damper assemblies.

3.1 Oil resistance

Oil compatibility is essential for an oil seal ring. If the elastomer swells excessively, softens, hardens, cracks, or loses elasticity after fluid exposure, the seal may fail even when its dimensions are correct. NBR is selected for many standard oil sealing applications because it generally performs well with commonly used mineral-oil-based lubricants.

Nevertheless, fluid compatibility must always be verified. Additives, special lubricants, cleaning agents, fuels, and synthetic fluids may interact differently with NBR. Customers should provide the actual fluid name, formulation, concentration, and expected temperature range when requesting technical confirmation.

3.2 Abrasion resistance

The seal lip is exposed to repeated sliding contact with the piston rod. Abrasion resistance helps the material withstand this movement over many cycles. NBR is recognized as a practical material for applications in which the rod surface is properly finished, adequately lubricated, and free from sharp defects.

Abrasion resistance does not eliminate the need for good counter-surface quality. Scratches, burrs, corrosion, excessive roughness, or embedded particles can damage the lip. The sealing material and the piston rod should therefore be treated as a functional pair rather than as independent components.

3.3 Elastic recovery

Elastic recovery allows the seal to maintain contact after deformation. This is important during pressure changes, rod movement, and minor variations in the housing or rod dimensions. A material with suitable elasticity can recover its shape after compression and continue to support the sealing interface.

The use of NBR in this product reflects a focus on standard industrial applications where dependable oil resistance, moderate friction, and cost-effective production are more important than extreme-temperature or highly specialized chemical resistance. For high-temperature, aggressive-chemical, or unusual environmental conditions, alternative materials such as HNBR or FPM may need to be evaluated separately.

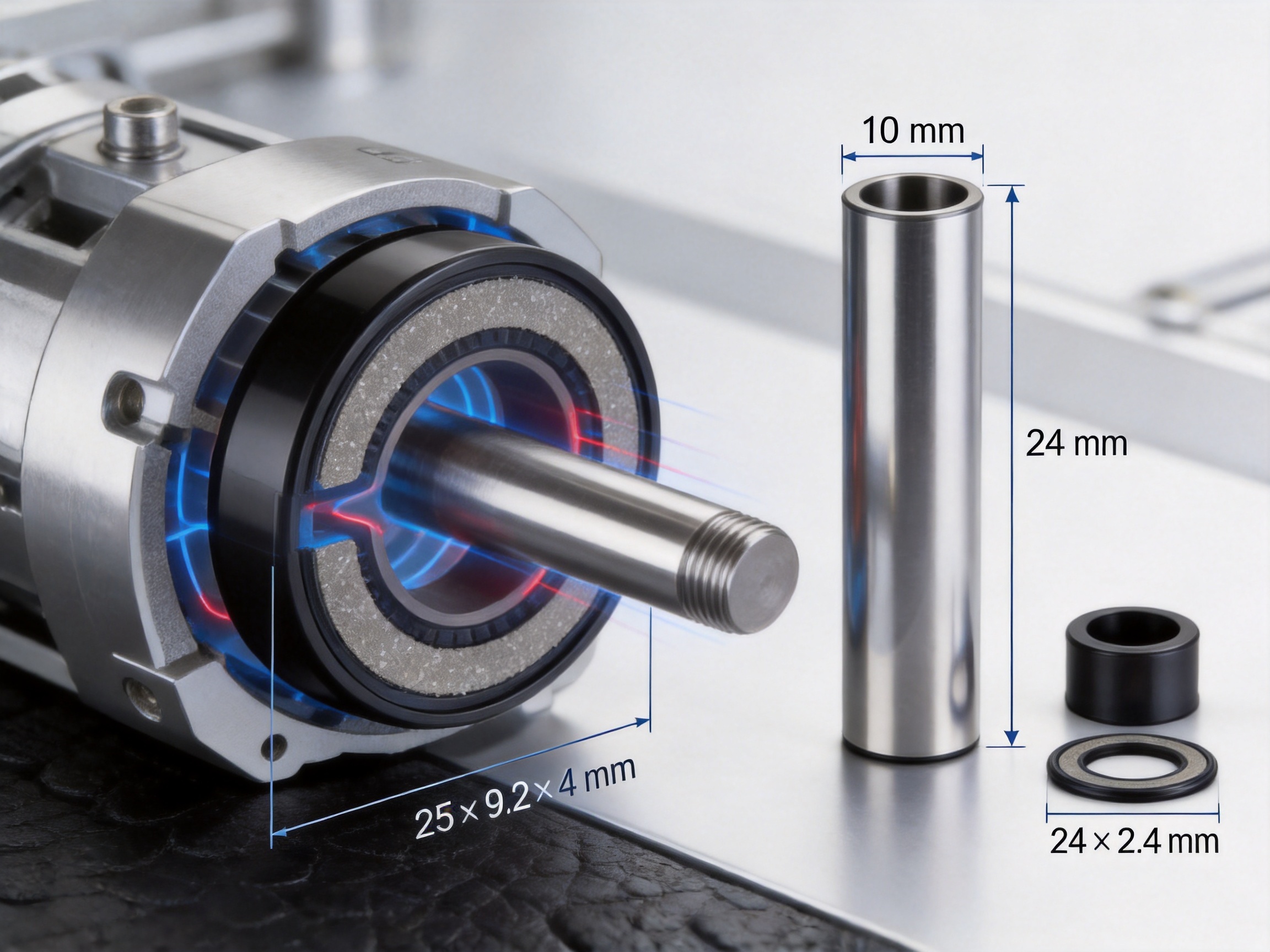

4. Dimensional Design and System Compatibility

Correct dimensional matching is one of the most important conditions for seal performance. The 25mm Standard Balanced Y-Seal has an outside diameter of 25 mm, an inside diameter of 9.2 mm, and a height of 4 mm. It is associated with a 24 mm steel pipe inner diameter and a 10 mm piston rod diameter.

The relationship between the nominal rod diameter and the seal inside diameter is part of the sealing design. The 9.2 mm inner dimension does not mean that the seal should be installed on every 9.2 mm rod. Instead, the seal must be evaluated within the intended 24 × 10 system, including compression, interference, groove geometry, and the movement of the rod through the sealing lip.

The O-ring adapter measures 24 × 2.4 mm and supports the installation arrangement. Its purpose is to help position or seal the assembly interface according to the relevant housing design. The adapter should not be substituted with an unverified size, because an incorrect O-ring can cause insufficient retention, excessive compression, assembly damage, or leakage around the outer diameter.

System Element	Relevant Dimension or Requirement	Reason for Attention
Seal outside diameter	25 mm	Must match the receiving housing or installation structure.
Seal inside diameter	9.2 mm	Works as part of the intended dynamic rod-sealing geometry.
Seal height	4 mm	Influences axial placement and available installation space.
Steel pipe inner diameter	24 mm	Defines the associated cylinder-side configuration.
Piston rod diameter	10 mm	Defines the moving counter-surface for the seal.
O-ring adapter	24 × 2.4 mm	Supports the relevant assembly interface.
Application parameter	50–1300N stated design range	Must be confirmed against the complete product design.

Manufacturers should verify the groove dimensions, compression ratio, lead-in chamfer, rod tolerance, bore tolerance, and surface finish before beginning mass production. A seal that is dimensionally correct in isolation can still perform poorly if the surrounding hardware does not follow a suitable design.

5. Advantages Compared with Generic Sealing Parts

Generic seals may appear attractive because of their low purchase price or broad availability. However, a generic part can create hidden costs when its profile, material, dimensions, or manufacturing consistency do not match the intended gas spring or damper assembly. The 25mm Standard Balanced Y-Seal offers several practical advantages over an unverified substitute.

5.1 Application-oriented dimensional specification

The product is associated with a clearly defined 24 × 10 system and a 24 × 2.4 mm O-ring adapter. This application-oriented information is more useful than a simple statement of nominal diameter. It helps engineers evaluate the seal in the context of the cylinder and rod arrangement rather than selecting a part based only on a catalog number.

5.2 Balanced performance

The product is described as offering moderate friction, high stock compatibility, and high cost performance. These characteristics address common production requirements. A seal for a high-volume gas spring or damper line must be reliable enough for repeated operation while remaining economical and readily available for replenishment.

Compared with an excessively high-friction seal, a balanced Y-profile can help support smoother rod movement. Compared with a low-cost but poorly controlled generic seal, a product made to a defined specification can reduce the risk of inconsistent sealing force, uneven wear, and variation between production batches.

5.3 Standard NBR material

NBR provides a familiar and widely available material platform for standard oil sealing. Purchasing teams, engineers, and maintenance departments are generally able to understand its basic performance profile and compare it with alternative elastomers. This can simplify material approval, replacement planning, and product documentation.

5.4 Compatibility with stock components

High stock compatibility is especially valuable for manufacturers that maintain multiple gas spring or damper models. A standard seal configuration can reduce the number of special parts that must be stored and may make it easier to support replacement demand. It can also simplify production scheduling when the same sealing platform is used across related product families.

5.5 Support for cost-controlled production

A sealing component affects the total cost of a finished gas spring or damper through its purchase price, assembly time, failure rate, warranty exposure, and inventory requirements. The stated cost-performance focus of the 25mm Standard Balanced Y-Seal makes it suitable for customers seeking a practical balance rather than an unnecessarily specialized solution.

5.6 Easier technical communication

A defined product code, dimensional set, material designation, application configuration, and adapter size provide a more effective basis for technical communication. When a customer requests samples, replacement parts, or custom modifications, these details help reduce ambiguity between the buyer, seal supplier, and assembly manufacturer.

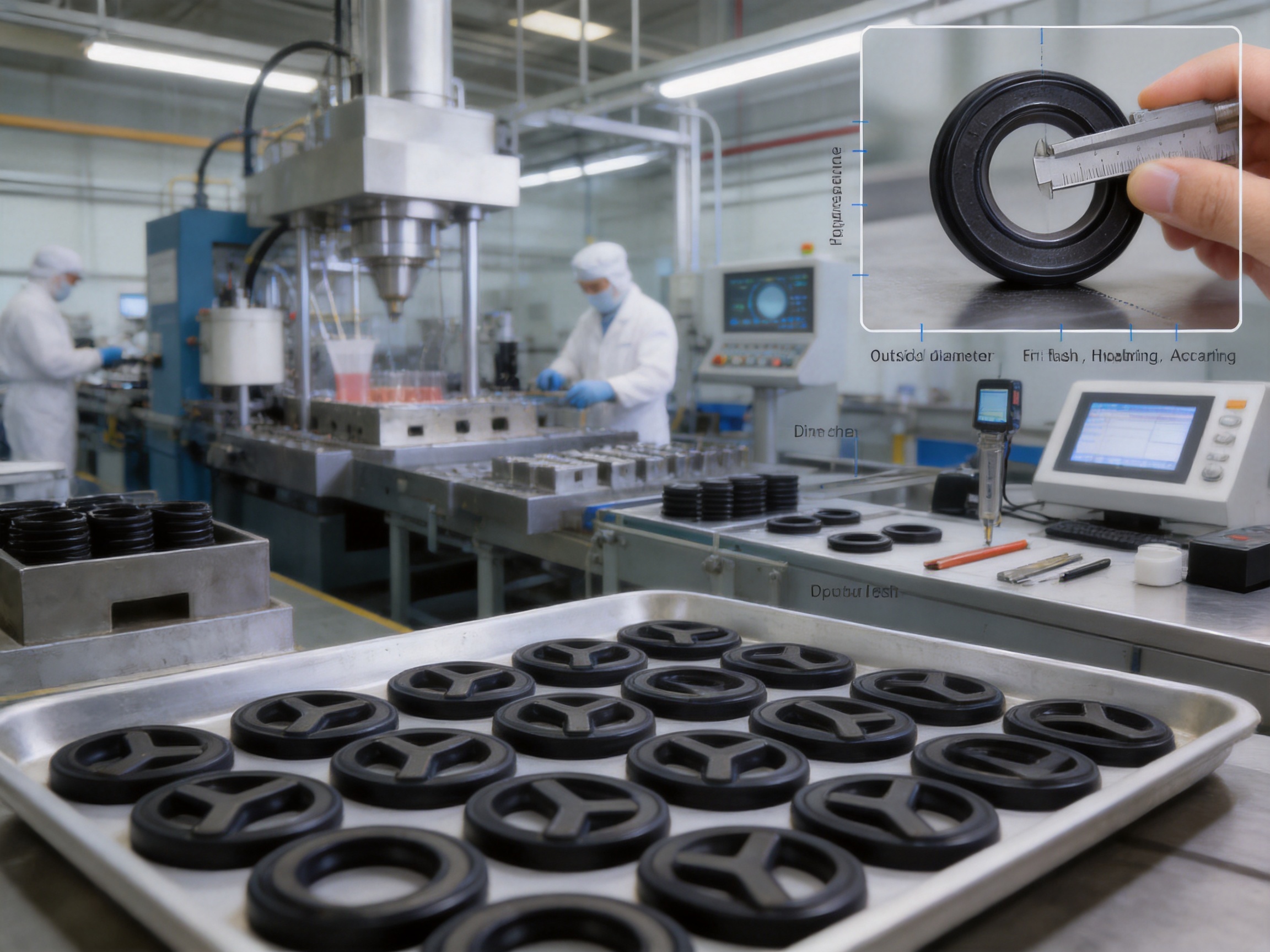

6. Manufacturing Strengths Behind Consistent Seal Performance

The performance of an elastomeric seal depends heavily on manufacturing discipline. Rubber mixing, mold preparation, forming, curing, trimming, inspection, packaging, and traceability must work together. A high-quality profile cannot be produced consistently through material selection alone.

Ningguo Jnsseals Sealing Technology Co., Ltd. is a high-tech sealing enterprise founded in 2019 and headquartered in Anhui, China. Its activities focus on the research, development, and application of sealing technology for gas springs, dampers, and related O-ring products. This specialization is relevant to the 25mm Standard Balanced Y-Seal because the product is designed for the same general family of motion-control and pressure-sealing applications.

6.1 Product-focused research and development

Specialized sealing development requires an understanding of how elastomer profiles interact with metal components under real operating conditions. Research and development work may include profile design, material evaluation, dimensional analysis, friction assessment, leakage testing, and application consultation.

A company focused on gas spring and damper sealing can develop knowledge that is more directly relevant than general rubber molding experience. The required balance among sealing, friction, stroke movement, pressure, and service life is specific to dynamic assemblies. Such application knowledge can support more useful recommendations during product selection and customization.

6.2 Advanced production equipment

Advanced production equipment supports the repeatability of molded rubber components. Controlled forming and curing conditions help maintain the intended profile, dimensional stability, and material properties. Equipment capability is particularly important for small sealing elements because minor deviations in lip geometry, height, or inner diameter can affect assembly and performance.

Production equipment must be supported by appropriate process settings, maintenance, calibration, and operator training. A modern machine does not automatically guarantee a consistent product. The manufacturing system must connect equipment capability with documented procedures and inspection standards.

6.3 Material and compound control

NBR performance depends on the selected compound formulation and its processing history. Control of raw materials, mixing conditions, batch identification, and curing behavior helps reduce variation in hardness, elasticity, tensile strength, compression set, and resistance to oil exposure.

For customers with specific requirements, material discussions may include hardness, temperature range, fluid compatibility, compression set, color, and regulatory considerations. The standard product uses NBR, but a specialized sealing supplier may also be able to evaluate HNBR, FPM, or other materials when the application requires a different performance profile.

6.4 Dimensional inspection

Inspection of the 25 × 9.2 × 4 mm product should address the outside diameter, inside diameter, height, profile condition, surface quality, flash, tearing, deformation, and other visible defects. Measuring equipment and inspection methods should be selected according to the flexibility and geometry of the rubber part.

Dimensional inspection is most valuable when it is integrated into the production process rather than performed only at the end. Process monitoring can identify drift before a large quantity of parts is produced. This supports more stable output and helps reduce the risk of mixed or nonconforming inventory.

6.5 Testing and technical service

Testing may include visual inspection, dimensional verification, material property testing, oil immersion evaluation, compression set testing, friction assessment, leakage testing, and cycling tests in representative assemblies. The appropriate test program depends on the customer’s application and acceptance criteria.

Technical service is another important strength. The company states that it provides customized sealing solutions, including product design, testing, and technical consultation. This service model is valuable when a customer needs help translating operating conditions into a practical seal specification.

7. Production Process for a Precision NBR Y-Seal

A reliable Y-seal is the result of a controlled sequence of manufacturing stages. The exact process parameters may vary by compound, equipment, and product design, but the main stages generally include material preparation, molding, curing, finishing, inspection, and packing.

7.1 Engineering review

Before production, engineering personnel review the drawing, product code, material, dimensional tolerances, application configuration, and customer requirements. For the A-1-028 product, the review includes the 25 × 9.2 × 4 mm dimensions, the NBR material, the intended 24 × 10 gas spring or damper configuration, and the associated O-ring adapter.

This stage is also where potential design risks can be identified. If the customer’s rod finish, lubricant, operating temperature, or pressure differs from the standard application, the supplier may recommend a sample evaluation or a material and profile review.

7.2 Rubber compound preparation

NBR compound preparation involves combining the base elastomer with appropriate additives and processing ingredients. The mixing process must achieve a uniform distribution so that the final material has stable physical properties. Batch records and material identification are important for traceability.

Inconsistent mixing can produce local variations that may not be immediately visible but can later affect sealing or durability. For this reason, compound preparation should be carried out under defined conditions and monitored through suitable quality checks.

7.3 Mold preparation and forming

The mold defines the Y-seal profile and influences the final dimensional accuracy. Mold cleanliness, condition, alignment, and surface quality all affect the finished part. A well-maintained mold helps reduce flash, profile distortion, and surface defects.

During forming, the material must fill the cavity correctly without creating voids, trapped air, or incomplete sections. The thin sealing lips require particular attention because an underfilled or damaged lip may not establish the intended contact with the piston rod.

7.4 Curing and vulcanization

Curing transforms the prepared rubber compound into an elastic sealing material with the required mechanical properties. Temperature, time, pressure, and compound characteristics must be controlled. Under-curing may leave the material too soft or unstable, while over-curing may reduce elasticity and increase brittleness.

Stable curing supports consistent compression behavior and elastic recovery. These properties are critical for a dynamic seal because the product must maintain its shape and sealing force over repeated operating cycles.

7.5 Deflashing and finishing

After molding, excess rubber may need to be removed from parting lines and other areas. Deflashing must be controlled carefully. Excessive trimming can damage the sealing lip or alter the profile, while insufficient trimming can interfere with assembly and create leakage paths.

Finished parts should be checked for tears, cuts, surface contamination, distortion, and other defects. Clean handling is important because dirt or foreign particles can become trapped on the sealing surface and damage the rod during initial movement.

7.6 Final inspection and packing

Final inspection confirms that the parts meet the specified dimensions, appearance requirements, and material identification. Packaging should protect the seals from dust, deformation, ozone, ultraviolet exposure, excessive heat, and contact with incompatible chemicals during storage and transportation.

Proper labeling should identify the product code, size, material, batch information, quantity, and any relevant storage guidance. Clear identification reduces the risk of mixing the 25mm Standard Balanced Y-Seal with visually similar parts that have different dimensions or materials.

8. Installation Guidance

Even a well-manufactured seal can fail if it is installed incorrectly. Installation should be performed by trained personnel using clean tools and a controlled procedure. The housing, groove, piston rod, and seal should be inspected before assembly.

8.1 Inspect the mating components

The 24 mm steel pipe inner diameter and 10 mm piston rod should be checked for burrs, sharp edges, corrosion, dents, excessive roughness, and contamination. A damaged rod can cut or abrade the NBR lip during the first stroke. A defective bore or groove can distort the outer sealing area.

Lead-in chamfers are useful because they guide the seal over the rod without forcing the lip across a sharp edge. If the design does not include an adequate chamfer, an approved installation sleeve or protective tool may be required.

8.2 Confirm orientation

Y-type seals must be installed in the correct orientation relative to the pressure side and the direction of movement. The open side of the profile is normally positioned according to the pressure and sealing requirements of the assembly. The correct orientation should be confirmed from the product drawing or technical instructions rather than assumed from appearance alone.

8.3 Use compatible lubrication

A compatible lubricant can reduce installation friction and help protect the seal during the initial operating cycles. The lubricant must be compatible with NBR and with the gas spring or damper’s internal fluid. Incompatible grease, solvent, or assembly oil may cause swelling, softening, cracking, or loss of sealing performance.

8.4 Avoid twisting and over-stretching

The seal should not be twisted during installation. A twisted Y-seal may create an uneven contact line, localized leakage, and accelerated wear. The part should also not be stretched beyond its intended elastic range. Installation tools should support the seal evenly and avoid sharp contact with the sealing lips.

8.5 Verify the O-ring adapter

The 24 × 2.4 mm O-ring adapter should be checked for correct size, surface condition, and proper seating. It should lie flat in its groove without rolling, pinching, or crossing over an edge. If the adapter is damaged or incorrectly positioned, leakage may occur around the outer interface even when the main Y-seal is installed correctly.

9. Application Areas

The 25mm Standard Balanced Y-Seal is suitable for evaluation in gas springs, dampers, and other reciprocating oil-sealing applications using the associated dimensions. Its standard NBR construction and moderate friction characteristics make it relevant to a range of industries.

9.1 Automotive components

Gas springs and dampers are used in vehicle hoods, trunks, tailgates, seats, doors, and other motion-control systems. A dependable seal helps retain internal lubricant and maintain consistent force throughout the service period. Automotive applications also require attention to temperature variation, vibration, contamination, and high cycle counts.

9.2 Furniture and office equipment

Adjustable chairs, cabinets, beds, recliners, and lifting mechanisms may use gas springs to support controlled movement. In these applications, smooth movement, low noise, stable force, and long service life are important. A moderate-friction seal can contribute to predictable operation when matched with the correct gas spring design.

9.3 Home appliances

Appliance doors, covers, damped hinges, and lifting mechanisms may rely on compact gas springs or dampers. The seal must occupy limited space while protecting the internal working medium. Standard dimensions and stock compatibility can help appliance manufacturers manage product families and replacement requirements.

9.4 Medical equipment

Medical beds, treatment tables, examination equipment, and support mechanisms may use controlled-motion components. In these applications, sealing performance should be considered together with cleanliness, material documentation, operating environment, and applicable customer standards.

9.5 Construction and industrial equipment

Industrial covers, access panels, lifting mechanisms, and construction equipment may use gas springs or dampers to control movement. These environments can expose seals to dust, vibration, temperature changes, and frequent operation. Proper rod protection and maintenance remain essential even when a suitable seal material is selected.

10. Selecting the Correct Seal for an Application

Product selection should begin with the operating conditions rather than the purchase price alone. Engineers should collect the following information before approving the 25mm Standard Balanced Y-Seal for a new application:

• Cylinder or steel pipe inner diameter.

• Piston rod diameter and surface finish.

• Seal housing and groove dimensions.

• Required seal outside diameter, inside diameter, and height.

• Internal oil or lubricant type.

• Minimum and maximum operating temperature.

• Working pressure or gas spring force requirements.

• Stroke length, speed, and frequency.

• Expected service life and cycle count.

• Exposure to dust, water, cleaning chemicals, ozone, or sunlight.

• Required friction, leakage, and force characteristics.

The stated design applicable range of 50–1300N provides an important reference for the intended product family. However, force rating alone does not determine seal suitability. Two assemblies with the same nominal force may have different temperatures, stroke speeds, lubricants, rod finishes, and pressure distributions. Application testing is recommended when conditions fall outside standard operating assumptions.

11. Quality and Reliability Considerations

Seal reliability should be evaluated through both component quality and system performance. A visually acceptable seal may still be unsuitable if its compression set, hardness, material compatibility, or friction behavior is outside the required range.

11.1 Leakage performance

Leakage testing should be performed using a representative assembly wherever possible. The test should reproduce the relevant rod movement, lubricant, pressure, temperature, and cycle conditions. Static inspection alone cannot fully predict dynamic sealing behavior.

11.2 Friction and movement behavior

Friction testing can help identify whether the seal supports the intended gas spring or damper performance. Excessive friction may increase breakaway force and create stick-slip movement. Very low friction may be associated with insufficient contact or leakage risk. The goal is controlled, repeatable behavior.

11.3 Compression set

Compression set describes the tendency of an elastomer to retain deformation after sustained compression. Excessive compression set can reduce the ability of the seal to maintain contact with the housing or rod. Testing under relevant temperature and time conditions can provide useful information about long-term performance.

11.4 Surface and profile condition

Sealing lips must be free from cuts, nicks, voids, excessive flash, and molding defects. The surface should be clean and uniform. Small defects at the lip can become larger during reciprocating movement and may create leakage channels.

11.5 Batch traceability

Batch traceability supports investigation and quality improvement. Product code A-1-028 should be connected with the relevant material batch, production date, inspection record, and shipment information. This is particularly important for customers producing safety-sensitive or high-volume equipment.

12. Customization and Technical Cooperation

Standard products are efficient when the application matches the documented design. However, some customers require changes in material, profile, hardness, dimensions, friction, or environmental resistance. A specialized sealing supplier can support these projects through technical consultation and sample development.

Customization may involve adapting the seal to a different rod diameter, housing size, groove, fluid, temperature range, or pressure condition. It may also involve changing from standard NBR to HNBR or FPM when improved temperature or chemical resistance is required. Each change should be evaluated carefully because altering one property may affect friction, elasticity, cost, mold requirements, and production lead time.

The company’s stated service capabilities include product design, testing, and technical consultation. These capabilities can help customers move from an initial drawing or failed sample toward a more suitable sealing solution. Technical cooperation is most efficient when the customer supplies complete application data and clearly defined acceptance criteria.

For new projects, a recommended development process includes application review, drawing confirmation, material selection, sample production, laboratory testing, assembly testing, pilot production, and final approval. This process helps reduce the risk of adopting a seal before its performance has been demonstrated in the actual system.

13. Storage, Handling, and Maintenance

NBR seals should be stored in a clean, dry, and reasonably cool environment. Direct sunlight, ozone-generating equipment, excessive heat, humidity, dust, and contact with oils or chemicals should be avoided unless those substances are part of the approved application.

Seals should remain in their original packaging until use. They should not be compressed under heavy loads or stored in a way that creates permanent deformation. Stock should be managed using batch identification and suitable first-in, first-out procedures.

During handling, personnel should avoid using sharp tools, dirty gloves, or excessive force. A seal that looks intact can still be weakened by a small cut or deep scratch. Any part that has been contaminated, distorted, or damaged should be removed from production rather than installed in a pressure-containing assembly.

Maintenance teams should monitor the finished gas spring or damper for oil leakage, reduced force, abnormal friction, jerky movement, corrosion on the rod, and visible damage. When a seal replacement is required, the cause of failure should be investigated. Replacing the seal without correcting a damaged rod, incorrect lubricant, excessive pressure, or poor installation may lead to repeated failure.

14. Why Specialized Sealing Expertise Creates Value

Sealing technology is often treated as a small component category, but its effect on the entire product can be substantial. The seal influences leakage control, movement smoothness, durability, manufacturing yield, warranty cost, and user confidence. A supplier with specialized knowledge can contribute value beyond the physical part.

Research capability helps connect product geometry with real application behavior. Production capability supports repeatable quality. Testing capability provides evidence for product selection. Technical service helps customers solve problems more efficiently. Together, these strengths can reduce development time and improve the reliability of the finished assembly.

Ningguo Jnsseals Sealing Technology Co., Ltd. serves industries including automotive, furniture, home appliances, medical equipment, construction, and other industrial sectors. Its focus on gas springs, dampers, and O-ring products provides a relevant foundation for customers seeking standard or customized sealing components.

The company’s stated philosophy, “People Oriented, Innovation Driven, Pursuit of Excellence,” reflects an emphasis on technical development and customer support. For international customers, practical cooperation also depends on clear drawings, responsive communication, stable production, accurate documentation, and reliable delivery coordination.

15. Purchasing Checklist for the 25mm Standard Balanced Y-Seal

Before ordering, customers should confirm the product code A-1-028 and verify that the required product dimensions are 25 × 9.2 × 4 mm. The associated 24 × 2.4 mm O-ring adapter should also be included in the technical review when required by the assembly design.

Purchasers should confirm the NBR material and provide the intended lubricant or internal fluid. If the operating environment includes elevated temperature, special chemicals, outdoor ozone exposure, or unusual cleaning agents, additional material evaluation may be necessary.

The 24 × 10 configuration should be compared with the actual steel pipe inner diameter and piston rod diameter. Customers should not rely only on the name “25mm” because the complete seal geometry includes several dimensions that affect assembly and performance.

Production quantities, packaging requirements, batch documentation, inspection standards, sample approval procedures, and delivery schedules should be agreed upon in advance. For replacement applications, the original seal dimensions and failure condition should be recorded before a substitute is selected.

16. Frequently Asked Questions

Q1: What type of product is the 25mm Standard Balanced Y-Seal?

It is a Y-type oil seal ring intended for dynamic sealing in gas springs, dampers, and related reciprocating applications. It is identified by product code A-1-028.

Q2: What are the product dimensions?

The product dimensions are 25 mm outside diameter, 9.2 mm inside diameter, and 4 mm height. The associated O-ring adapter is 24 × 2.4 mm.

Q3: What material is used?

The standard product uses NBR, or nitrile butadiene rubber. NBR is commonly selected for oil-sealing applications because of its practical oil resistance, elasticity, abrasion resistance, and cost performance.

Q4: What system does this seal fit?

The product is specified for a 24 mm steel pipe inner diameter and a 10 mm piston rod diameter. The complete groove and housing design must still be checked before installation.

Q5: What does the 50–1300N range mean?

It is the stated design applicable range for the corresponding product application. It should not be treated as a universal pressure rating or converted without considering the complete gas spring or damper design.

Q6: Does the seal provide low friction?

The product is described as having moderate friction. This indicates a balanced approach between sealing contact and movement efficiency rather than an extreme low-friction or high-friction design.

Q7: Can the product be used with any oil?

No. NBR is compatible with many common petroleum-based oils, but compatibility depends on the exact fluid, additives, temperature, and exposure time. The internal lubricant should be confirmed before production use.

Q8: Can this seal replace a generic 25 mm seal?

Replacement should not be based on outside diameter alone. The inside diameter, height, profile, adapter size, material, groove, rod diameter, and operating conditions must all be compared.

Q9: What should be checked before installation?

Inspect the rod, bore, groove, chamfers, lubricant, and seal for damage or contamination. Confirm orientation and prevent twisting, over-stretching, pinching, or cutting during assembly.

Q10: Is customization available?

The supplier states that it provides customized sealing solutions, including product design, testing, and technical consultation. Customers should provide complete application information for a technical evaluation.

Q11: What industries can use this product?

Potential industries include automotive, furniture, home appliances, medical equipment, construction, and general industrial equipment using compatible gas spring or damper assemblies.

Q12: How should the seal be stored?

Store it in clean, dry conditions away from direct sunlight, ozone, excessive heat, dust, and incompatible chemicals. Keep it in its original packaging and avoid heavy compression or permanent deformation.

17. Conclusion

The 25mm Standard Balanced Y-Seal is a practical NBR Y-type oil seal ring for gas spring and damper applications based on a 24 mm steel pipe inner diameter and 10 mm piston rod diameter. Its 25 × 9.2 × 4 mm dimensions, 24 × 2.4 mm O-ring adapter, moderate friction characteristic, and stated 50–1300N design range provide a clear starting point for application evaluation.

Its main advantages are its application-oriented specification, compatibility with standard stock components, cost-conscious design, and suitability for repeated reciprocating movement. Compared with an unverified generic part, a defined product can provide better technical communication, more predictable assembly, and a stronger basis for inspection and replacement planning.

Product performance ultimately depends on the complete system. Correct rod and bore dimensions, suitable surface finish, compatible lubricant, proper orientation, accurate groove design, controlled installation, and representative testing are all essential. NBR is a practical standard material, but alternative elastomers should be considered when temperature, chemicals, or environmental conditions exceed normal NBR suitability.

Supported by research and development, production equipment, testing capability, and technical consultation, a specialized sealing manufacturer can help customers achieve more reliable gas spring and damper performance. For standard applications matching the documented configuration, the 25mm Standard Balanced Y-Seal offers a balanced and economical sealing option.

References

1. Product specification data for A-1-028, 25mm Standard Balanced Y-Seal, including dimensions, material, adapter size, and application configuration.

2. General engineering principles for elastomeric dynamic seals used in reciprocating gas spring, damper, hydraulic, and pneumatic assemblies.

3. General technical guidance on nitrile butadiene rubber, including oil resistance, abrasion resistance, elastic recovery, and material compatibility.

4. General practices for rubber seal molding, curing, deflashing, dimensional inspection, packaging, and batch traceability.

5. General maintenance and installation principles for O-rings, Y-seals, rod seals, and reciprocating sealing components.

Product: 25mm Standard Balanced Y-Seal
